TEIDE INDUSTRIAL

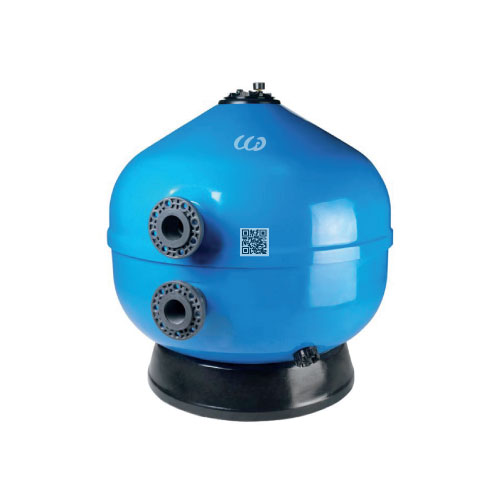

Sand filters made with polyester and fibreglass.
Filtration bed height of 1 m. From Ø1050 to Ø2000.
Description
Sand filters made with polyester and fibreglass.
Filtration bed height of 1 m. From Ø1050 to Ø2000.
Range of filters diameters from 1050 to 2500 mm, with 1 m filtration height.
Designed for use in public swimming pools.
Manufactured by spraying on layers of polyester resin and fibreglass strands.
Excellent gel-coat exterior finish.
Base made of polyester.
Ø400 upper lid with nuts.
Interior parts made of unalterable plastic UPVC.
Can be connected to 4 / 5 valves manifold.
Maximum working pressure: 2,5 Kg/cm2.
Maximum working temperature: 40 ºC.
Nozzle Plate: optional upon request.
